Designed for Better Comfort and Access
Infinite recline positions and either stationary or swing-away arms provide optimal patient comfort and better access for caregivers.

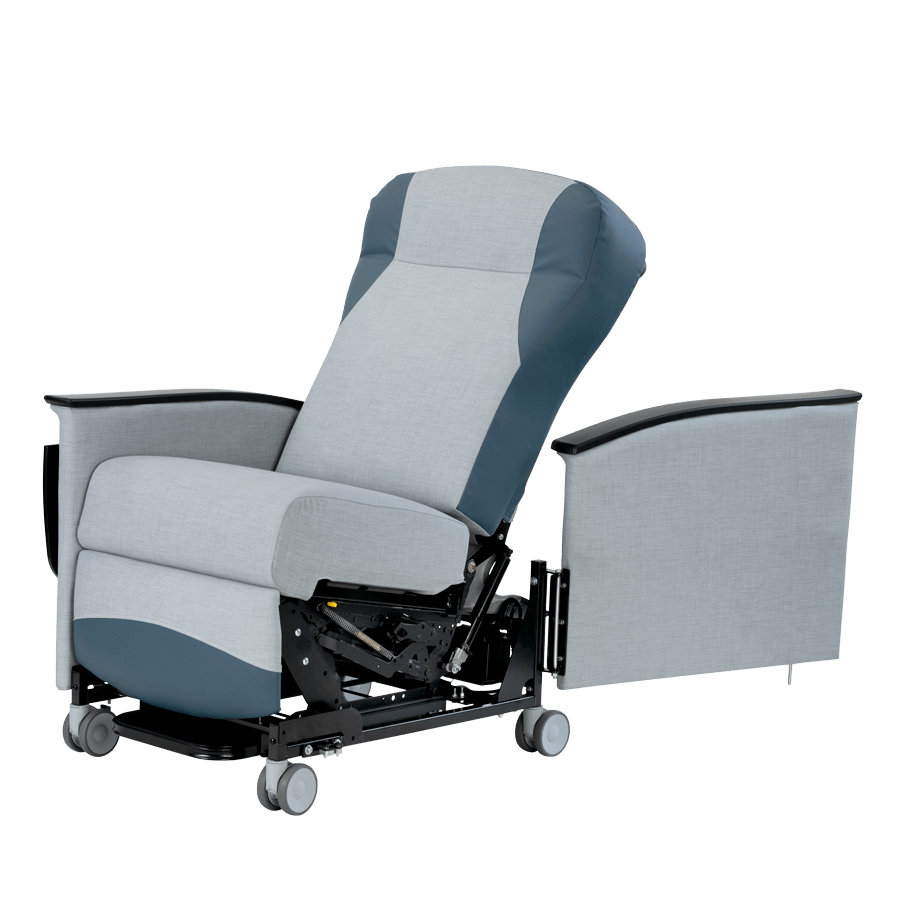

Alō Treatment
Available
in
Power,
Manual,
Power XL,
Manual XL,
Some people think our Alō recliners are so attractive and luxurious that they belong in a home, not a hospital. However, this seating solution is indeed engineered for clinical settings and applications. Standard features include powered recline and supine Trendelenburg positioning, a quick-release seat for complete cleaning and disinfecting, swing-away arms for no-barrier lateral patient transfers, and so much more.
*Image shown may include features, accessories, or fabrics that do not come standard on base model.
Some people think our Alō recliners are so attractive and luxurious that they belong in a home, not a hospital. However, this seating solution is indeed engineered for clinical settings and applications. Standard features include powered recline and supine Trendelenburg positioning, a quick-release seat for complete cleaning and disinfecting, swing-away arms for no-barrier lateral patient transfers, and so much more.
Request a QuoteProduct Specs

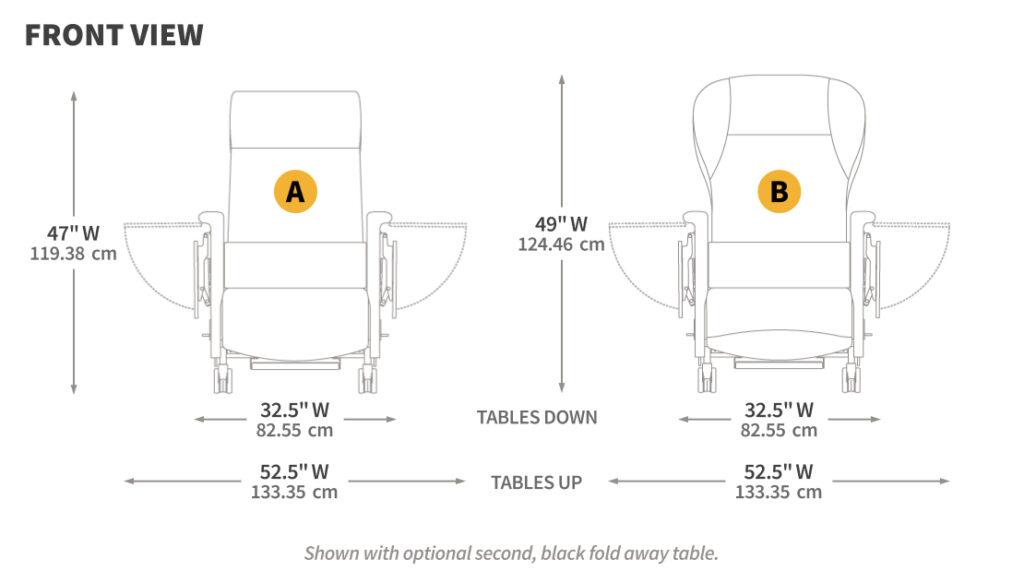

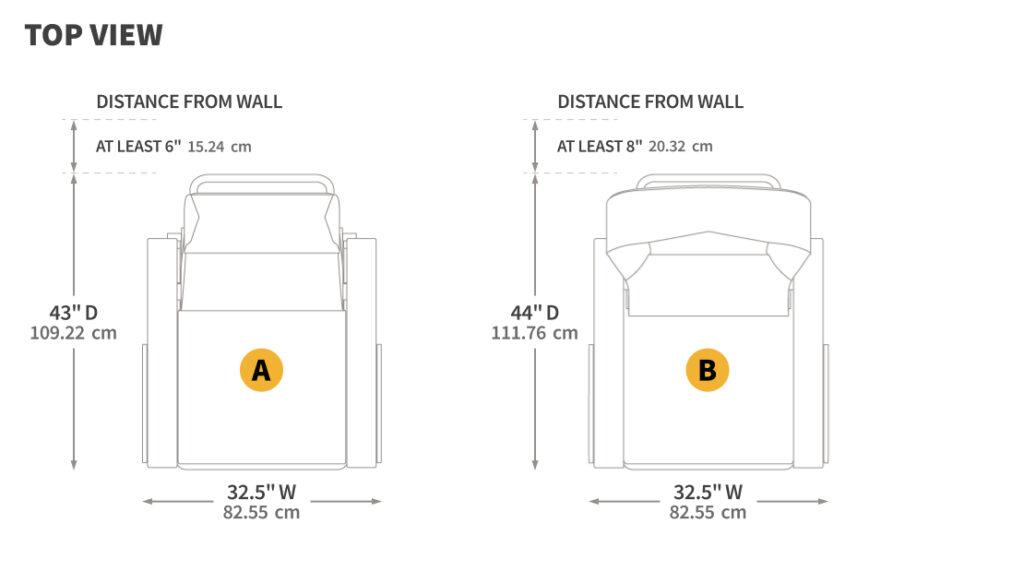

Measurements & Dimensions
Model Numbers
| Straight Back | Wing Back | |
| Model Number | Model: 61P | Model: 63P |
Measurements
| A | B | |
| Back Height (from floor/seat) | 47″/29″ (119.38 cm / 73.66 cm) | 49″/31″ (124.46 cm / 78.74 cm) |
| Overall Width – measured with both arms closed | 32.5″ (82.55 cm) | 32.5″ (82.55 cm) |
| Seat Width | 23″ (58.42 cm) | 23″ (58.42 cm) |
| Arm Height (from floor, highest point) | 29″ (73.66 cm) | 29″ (73.66 cm) |
| Seat Height/Depth | 24.5″/20.5″ (62.23 cm / 52.324 cm) | 24.5″/20.5″ (62.23 cm / 52.324 cm) |
| Overall Upright Depth (with handle) | 43″ (109.22 cm) | 44″ (111.76 cm) |
| Dual Thermoplastic Casters (diameter) | 4″ (10.16 cm) | 4″ (10.16 cm) |
| Weight Capacity | 300 lbs. (136.078 kg) | 300 lbs. (136.078 kg) |
Standard Features
- Powered or Manual Recline

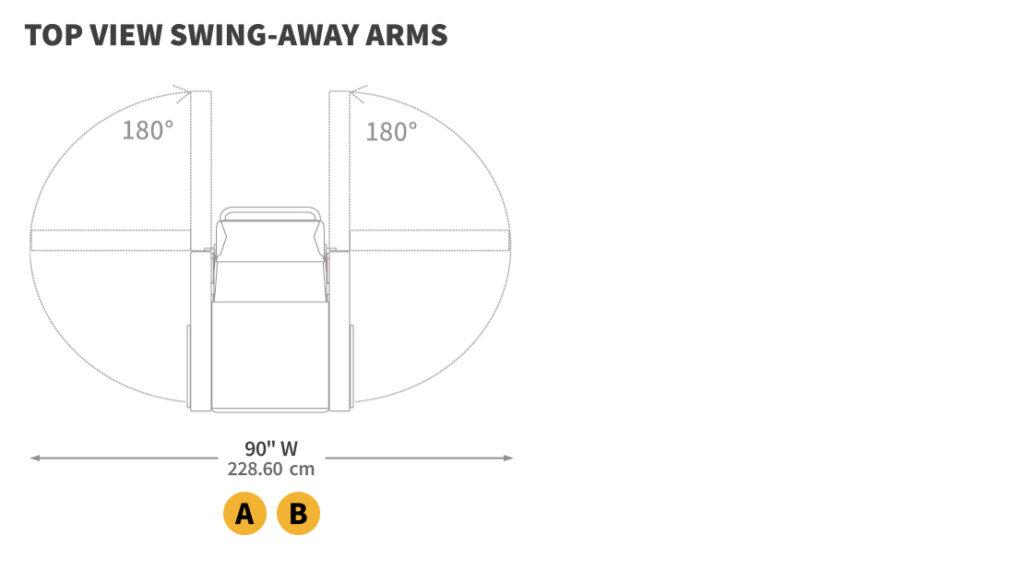

- Swing-Away Arms
- 4" Dual Thermoplastic Casters
- Trendelenburg
- Foot Tray
- Push Handle
- One standard (Black or Gray if requested) Fold Down Side Table
- Wall Hugger Mechanism
- Hand Held Remote/Pendant (power models only)
Accessories
Fabric & Finishes
Measurements & Dimensions
Model Numbers
| Straight Back | Wing Back | |
| Model Number | Model: 610 | Model: 630 |
Measurements
| A | B | |
| Back Height (from floor/seat) | 47″/29″ (119.38 cm / 73.66 cm) | 49″/31″ (124.46 cm / 78.74 cm) |
| Overall Width – measured with both arms closed | 32.5″ (82.55 cm) | 32.5″ (82.55 cm) |
| Seat Width | 23″ (58.42 cm) | 23″ (58.42 cm) |
| Arm Height (from floor, highest point) | 29″ (73.66 cm) | 29″ (73.66 cm) |
| Seat Height/Depth | 24.5″/20.5″ (62.23 cm / 52.324 cm) | 24.5″/20.5″ (62.23 cm / 52.324 cm) |
| Overall Upright Depth (with handle) | 43″ (109.22 cm) | 44″ (111.76 cm) |
| Dual Thermoplastic Casters (diameter) | 4″ (10.16 cm) | 4″ (10.16 cm) |
| Weight Capacity | 300 lbs. (136.078 kg) | 300 lbs. (136.078 kg) |
Fabric & Finishes

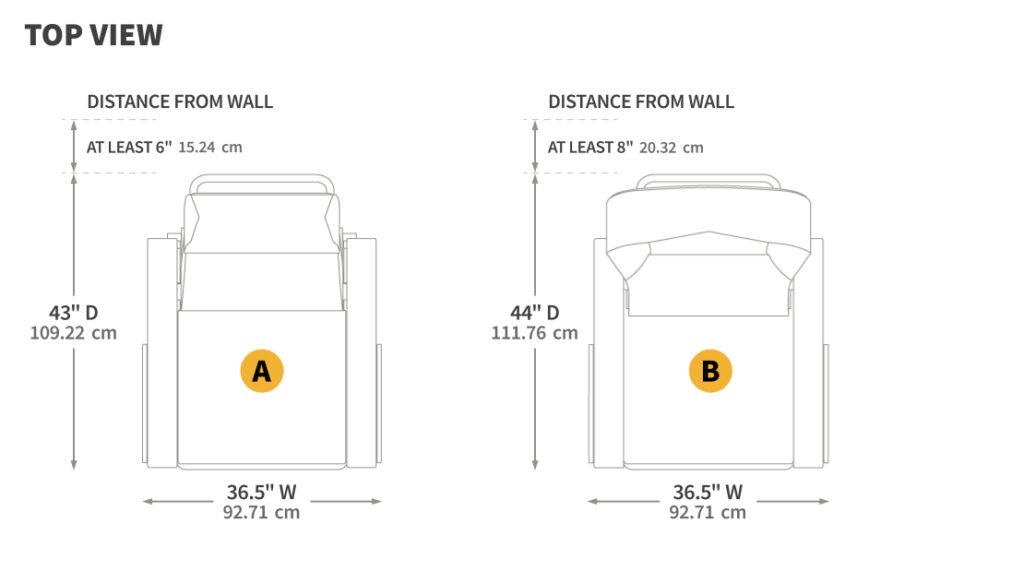

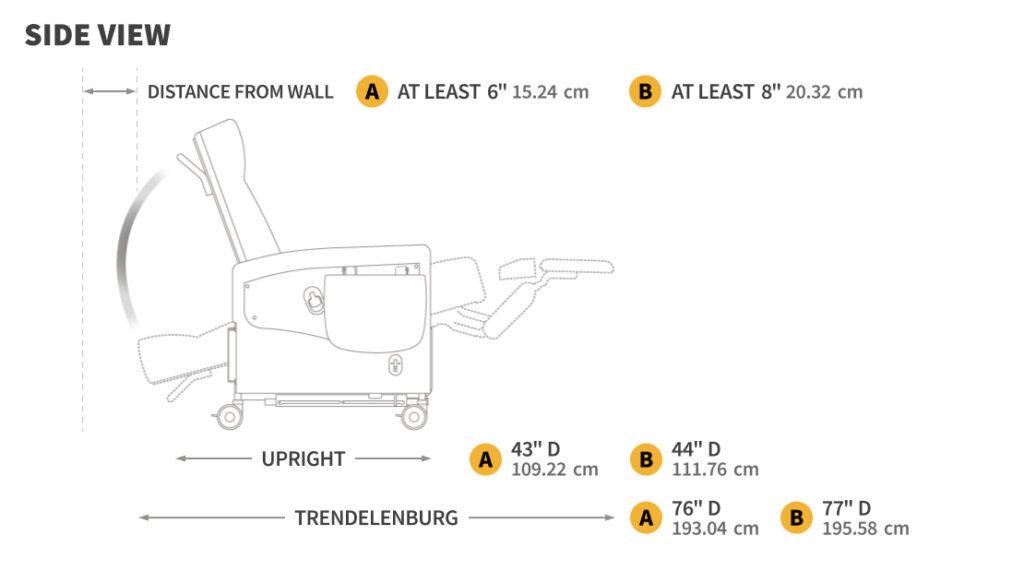

Measurements & Dimensions
Model Numbers
| Straight Back | Wing Back | |
| Model Number | Model: 62P | Model: 64P |
Measurements
| A | B | |
| Back Height (from floor/seat) | 48″/30″ (121.92 cm/ 76.2 cm) | 49″/31″ (124.46 cm / 78.74 cm) |
| Overall Width – measured with both arms closed | 36.5″ (92.71 cm) | 36.5″ (92.71 cm) |
| Seat Width | 27″ (68.58 cm) | 27″ (68.58 cm) |
| Arm Height (from floor, highest point) | 29″ (73.66 cm) | 29″ (73.66 cm) |
| Seat Height/Depth | 24.5″/20.5″ (62.23 cm / 52.324 cm) | 24.5″/20.5″ (62.23 cm / 52.324 cm) |
| Overall Upright Depth (with handle) | 43″ (109.22 cm) | 44″ (111.76 cm) |
| Dual Thermoplastic Casters (diameter) | 4″ (10.16 cm) | 4″ (10.16 cm) |
| Weight Capacity | 500 lbs. (226.796 kg) | 500 lbs. (226.796 kg) |
Fabric & Finishes
Measurements & Dimensions
Model Numbers
| Straight Back | Wing Back | |
| Model Number | Model: 620 | No |
Measurements
| A | B | |
| Back Height (from floor/seat) | 48″/30″ (121.92 cm/ 76.2 cm) | 49″/31″ (124.46 cm / 78.74 cm) |
| Overall Width – measured with both arms closed | 36.5″ (92.71 cm) | 36.5″ (92.71 cm) |
| Seat Width | 27″ (68.58 cm) | 27″ (68.58 cm) |
| Arm Height (from floor, highest point) | 29″ (73.66 cm) | 29″ (73.66 cm) |
| Seat Height/Depth | 24.5″/20.5″ (62.23 cm / 52.324 cm) | 24.5″/20.5″ (62.23 cm / 52.324 cm) |
| Overall Upright Depth (with handle) | 43″ (109.22 cm) | 44″ (111.76 cm) |
| Dual Thermoplastic Casters (diameter) | 4″ (10.16 cm) | 4″ (10.16 cm) |
| Weight Capacity | 500 lbs. (226.796 kg) | 500 lbs. (226.796 kg) |
Fabric & Finishes
The Champion Experience
Added Convenience
With fold-away tables, foot trays and quick-release seats, caregivers get more versatility and convenience from a Champion recliner.
THE ALŌ is commonly used in the following clinical environments
