Multi-Purpose Functionality

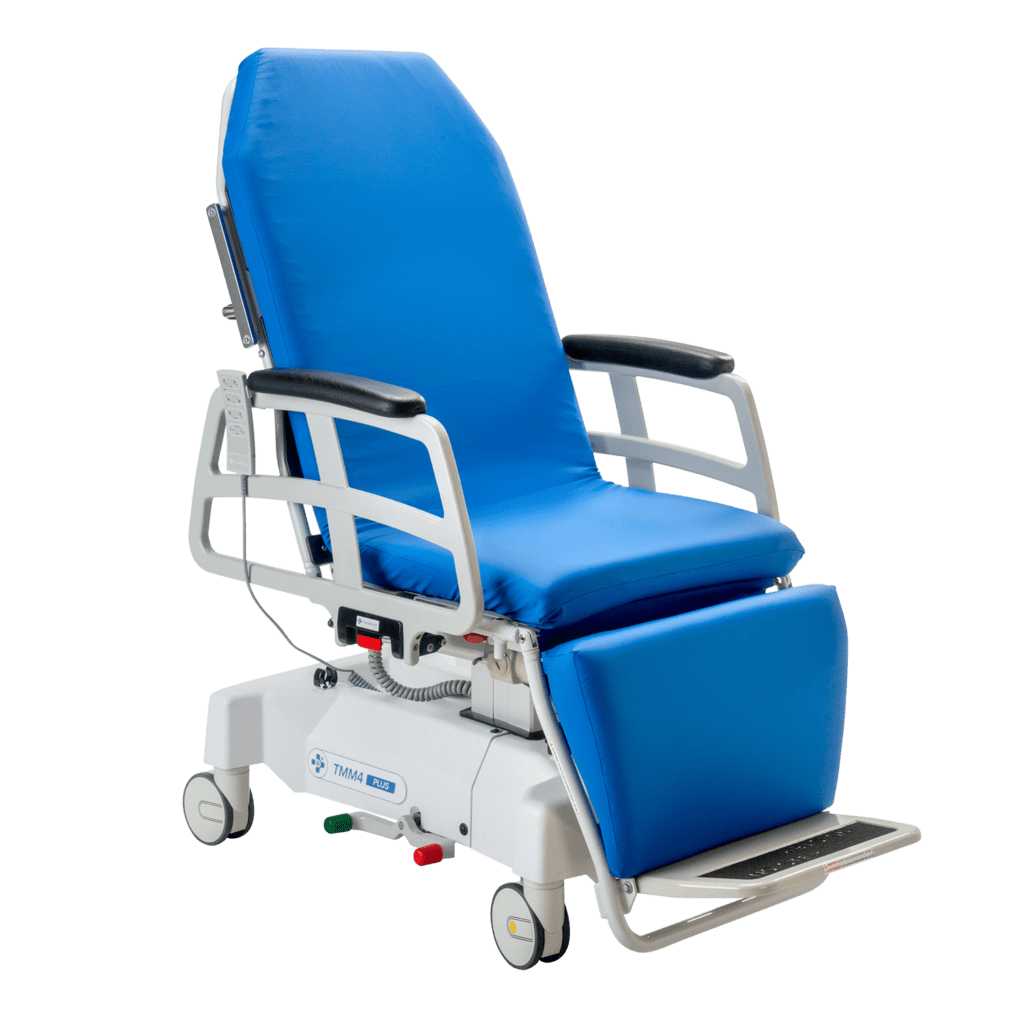

TMM4 PLUS Procedure-Chair
TMM Procedure-Chairs streamline surgical and procedural cycles by allowing patients to go from admission, to procedure, to discharge on a single surface.
Pendant powered patient positioning combined with four locking casters helps prevent transfer injuries while enabling improved operational throughput. A comprehensive selection of options and accessories provide a flexible solution to meet the transport and treatment needs of multiple departments and facility types.
The TMM4 PLUS may not be available in certain markets located outside the U.S. - Please contact a sales associate to learn more about availability and/or alternate product options for your area.

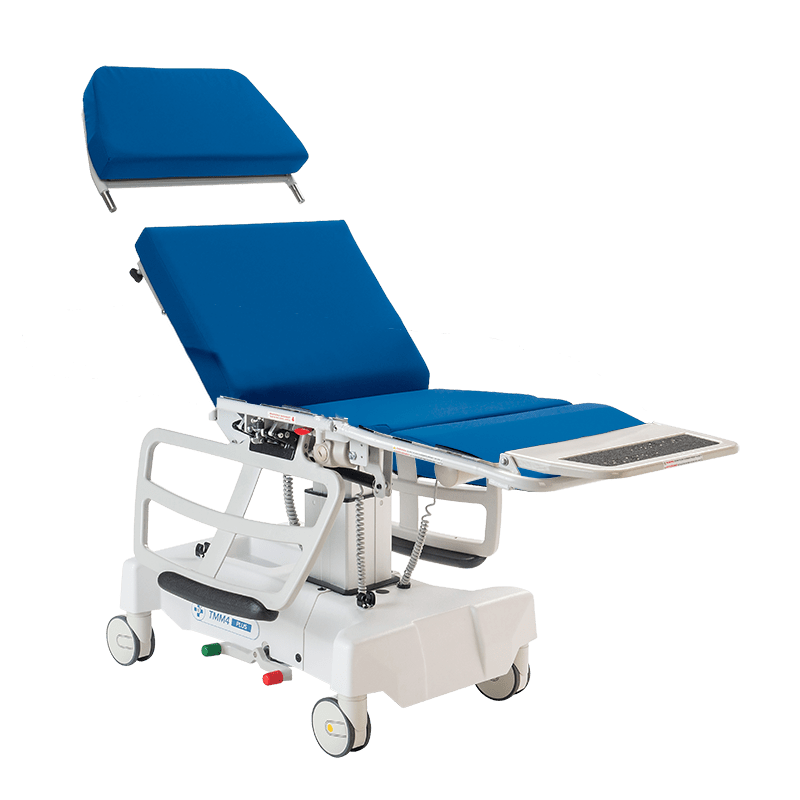

*Image shown may include features, accessories, or fabrics that do not come standard on base model.
TMM4 PLUS Procedure-Chair
TMM Procedure-Chairs streamline surgical and procedural cycles by allowing patients to go from admission, to procedure, to discharge on a single surface.
Pendant powered patient positioning combined with four locking casters helps prevent transfer injuries while enabling improved operational throughput. A comprehensive selection of options and accessories provide a flexible solution to meet the transport and treatment needs of multiple departments and facility types.
The TMM4 PLUS may not be available in certain markets located outside the U.S. - Please contact a sales associate to learn more about availability and/or alternate product options for your area.
Request a QuoteMeasurements & Dimensions
| SPECIFICATION DESCRIPTION | MODELS* | |||||
| TMM4 PLUS- B |
TMM4 PLUS- LB |
TMM4 PLUS- TB |
TMM5 PLUS- WB |
TMM4 PLUS- TLB |
TMM4 PLUS- WTB |
|
| Maximum Patient Weight | 500 lbs. (227 kg) | 500 lbs. (227 kg) | 500 lbs. (227 kg) | 500 lbs. (227 kg) | 500 lbs. (227 kg) | 500 lbs. (227 kg) |
| Seat Height, Low | 24.3” (61.7 cm) | 22.8” (57.9 cm) | 24.4″ (62 cm) | 24.3” (61.7 cm) | 22.8” (57.9 cm) | 24.4″ (62 cm) |
| Seat Height, High | 32.1” (81.5 cm) | 30.6” (77.7 cm) | 40.1″ (101.9 cm | 32.1” (81.5 cm) | 30.6” (77.7 cm) | 40.1″ (101.9 cm |
| Back Height | 33.75” (85.73 cm) | 33.75” (85.73 cm) | 33.75” (85.73 cm) | 33.75” (85.73 cm) | 33.75” (85.73 cm) | 33.75” (85.73 cm) |
| Side Rail Height, Up (seat pan to rail top) | 13.5” (34.3 cm) | 13.5” (34.3 cm) | 13.5” (34.3 cm) | 13.5” (34.3 cm) | 13.5” (34.3 cm) | 13.5” (34.3 cm) |
| Overall Chair Height, Low | 24.3” (61.7 cm) | 22.8” (57.9 cm) | 24.4” (62 cm) | 24.3” (61.7 cm) | 22.9” (58.2 cm) | 24.4” (62 cm) |
| Overall Chair Height, High | 32.1” (81.5 cm) | 30.6” (77.7 cm) | 40.1” (101.9 cm) | 32.1” (81.5 cm) | 38.6” (98 cm) | 40.1” (101.9 cm) |
| Seat Width | 24” (61 cm) | 24” (61 cm) | 24” (61 cm) | 28” (71 cm) | 24” (61 cm) | 28” (71 cm) |
| Overall Width (rails up) | 30” (76 cm) | 34” (86.4 cm) | 30” (76 cm) | 34” (86 cm) | 30” (76 cm) | 34” (86.4 cm) |
| Overall Width (rails down) | 24” (61 cm) | 28” (71 cm) | 24” (61 cm) | 28” (71 cm) | 24” (61 cm) | 28” (71 cm) |
| Patient Surface Length | 77” (195 cm) | 77” (195 cm) | 77” (195 cm) | 77” (195 cm) | 77” (195 cm) | 77” (195 cm) |
| Side Rail Length | 27.6” (70.1 cm) | 27.6” (70.1 cm) | 27.6” (70.1 cm) | 27.6” (70.1 cm) | 27.6” (70.1 cm) | 27.6” (70.1 cm) |
| Backrest Articulation Range | 0° – 75° | 0° – 75° | 0° – 75° | 0° – 75° | 0° – 75° | 0° – 75° |
| Trendelenburg** | 5° | 5° | 5° | 5° | 5° | 5° |
| Wheelbase (length x width) | 30” (76 cm) x 20” (51 cm) | 30” (76 cm) x 20” (51 cm) | 30” (76 cm) x 20” (51 cm) | 30” (76 cm) x 20” (51 cm) | 30” (76 cm) x 20” (51 cm) | 30” (76 cm) x 20” (51 cm) |
| * All models not represented. Additional configurations available. | ||||||
| ** An additional 2° of Trendelenburg is achieved when the Manual Quick Release is utilized. | ||||||
[su_button url=”https://championchair.com/wp-content/uploads/2022/01/TMM4-Plus_SpecSheet_INHOUSE2.pdf” target=”blank” style=”soft” background=”#fcb53b” size=”5″ radius=”round” icon=”icon: download” icon_color=”#000000″]Click here to download specifications sheet[/su_button]
Standard Features
- Patient weight capacity: 500 lb.
- Radiolucent back
- Fold-down push bar
- Push-button pendant
- Central locking brake
- Swing & tuck side rails
- Memory foam cushions
- Manual quick-release back
- Electro-static discharge steering caster
- Choice of dual column (max 32" height) or triple column base (max 40" height)
- Choice of 24" seat width or 28" seat width (W)
- Auto-extending footrest (non seat-tilt models only)
Accessories
Fabric & Finishes
Videos & Support Assets
Measurements & Dimensions
| SPECIFICATION DESCRIPTION | MODELS* | |
| TMM4 PLUS- XB |
TMM4 PLUS- XWTB |
|
| Maximum Patient Weight | 500 lbs. (227 kg) | 500 lbs. (227 kg) |
| Seat Height, Low | 24.3” (61.7 cm) | 23.9” (60.7 cm) |
| Seat Height, High | 32.2” (81.8 cm) | 39.7” (100.8 cm) |
| Back Height | 33.75” (85.73 cm) | 33.75” (85.73 cm) |
| Side Rail Height, Up (seat pan to rail top) | 13.5” (34.3 cm) | 13.5” (34.3 cm) |
| Overall Chair Height, Low | 54” (137 cm) | 53” (135 cm) |
| Overall Chair Height, High | 62” (157 cm) | 70” (178 cm) |
| Seat Width | 24” (61 cm) | 28” (71 cm) |
| Overall Width (rails up) | 30” (76 cm) | 34” (86.4 cm) |
| Overall Width (rails down) | 24” (61 cm) | 28” (71 cm) |
| Patient Surface Length | 72” (195 cm) | 72” (195 cm) |
| Side Rail Length | 27.6” (70.1 cm) | 27.6” (70.1 cm) |
| Backrest Articulation Range | 0° – 86° | 0° – 86° |
| Trendelenburg | 20° / 5° Reverse | 20° / 5° Reverse |
| Wheelbase (length x width) | 33” (84 cm) x 20” (511 cm) | 33” (84 cm) x 20” (511 cm) |
| * All models not represented. Additional configurations available. | ||
| ** An additional 2° of Trendelenburg is achieved when the Manual Quick Release is utilized. | ||
[su_button url=”https://championchair.com/wp-content/uploads/2022/01/TMM4X_SpecSheet_IN-HOUSE2.pdf” target=”blank” style=”soft” background=”#fcb53b” size=”5″ radius=”round” icon=”icon: download” icon_color=”#000000″]Click here to download specifications sheet[/su_button]
Standard Features
- Patient weight capacity: 500 lb.
- Radiolucent back
- Fold-down push bar
- Push-button pendant
- Central locking brake
- Swing & tuck side rails
- Memory foam cushions
- Manual quick-release back
- Electro-static discharge steering caster
- Choice of dual column (max 32" height) or triple column base (max 40" height)
- Choice of 24" seat width or 28" seat width (W)
- Auto-extending footrest (non seat-tilt models only)
