Ascent II
Available In
Power, Power XL
Available in wingback style, the Ascent II features extra padding for patient comfort during treatment, subtle curves for a modern aesthetic, and swing-away arms for easier ingress and egress. With the durable engineering and strength of the Classic but with an upscale design, the Ascent II is an ideal medical chair for patients and
providers during longer seated therapies
and treatments.
*Image shown may include features, accessories, or fabrics that do not come standard on base model.
Product Specs
Measurements & Dimensions
Model Numbers
| Standard Model | |
| Model Number | Model: 67P |

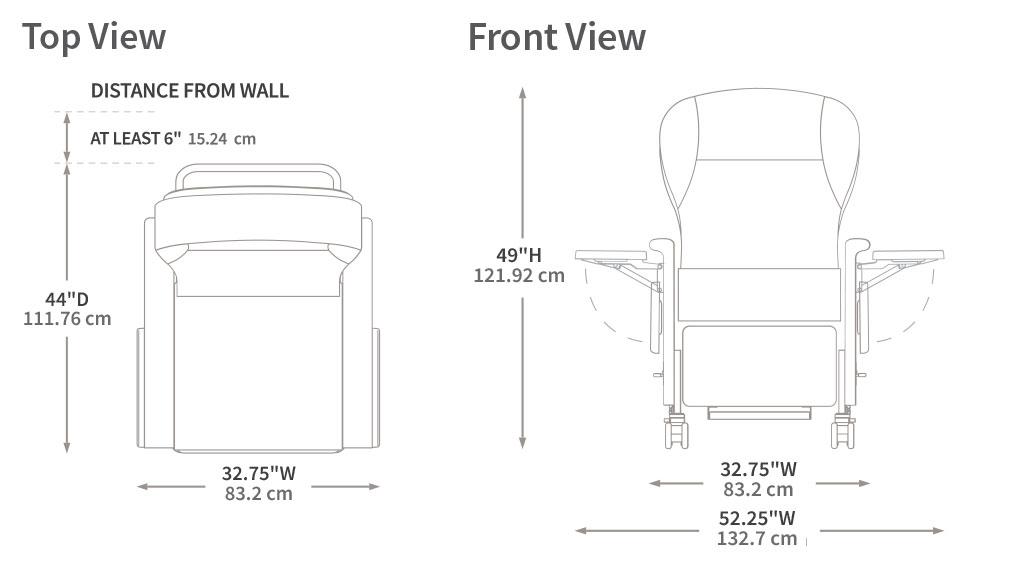

Measurements
| Back Height (from floor/seat) | 49″/31″ (121.92 cm/ 78.7 cm) |
| Overall Width (2 tables down/up) | 32.75″/52.25″ (83.2 cm / 132.7 cm) |
| Seat Width | 22.75″ (57.79 cm) |
| Arm Height (from floor) | 29″ (73.70 cm) |
| Seat Height/Depth | 24.50″ / 20.50″ (62.23 cm / 52.32 cm) |

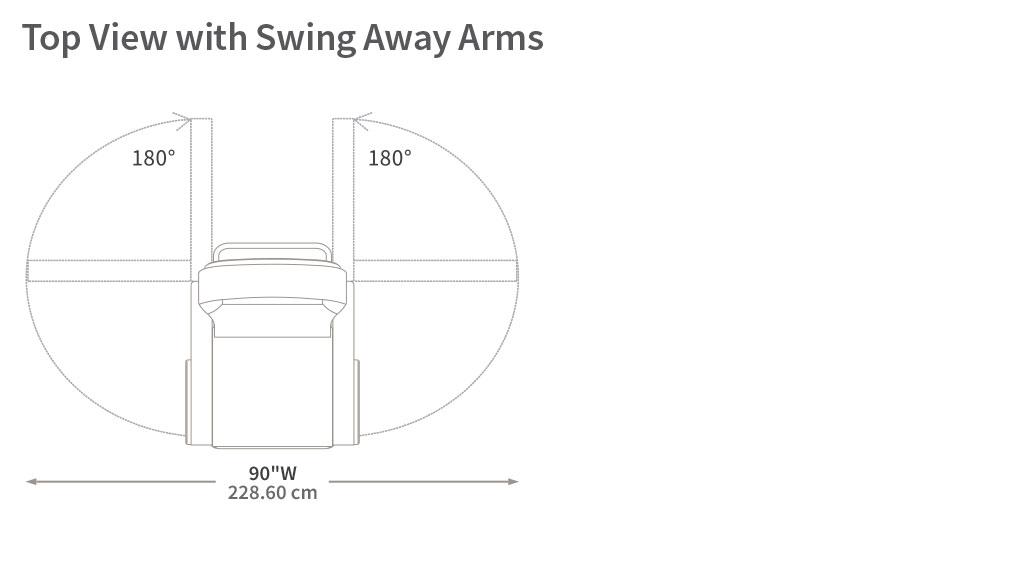

| Maximum width (arms open at widest) | 90″ (228.60 cm) |
| Minimum width (arms open at 180º) | 32.75″ (83.18 cm) |

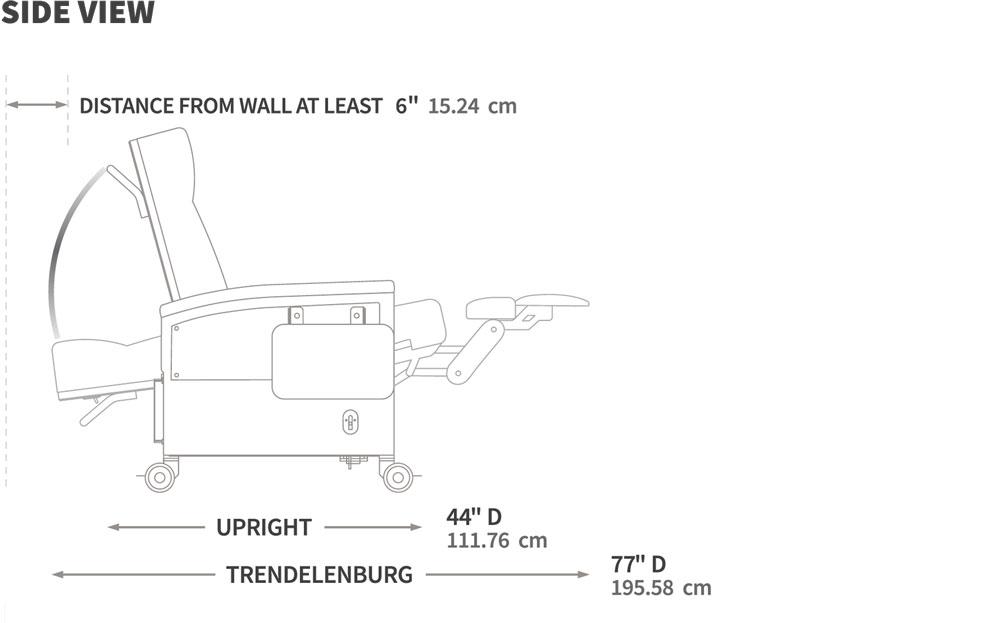

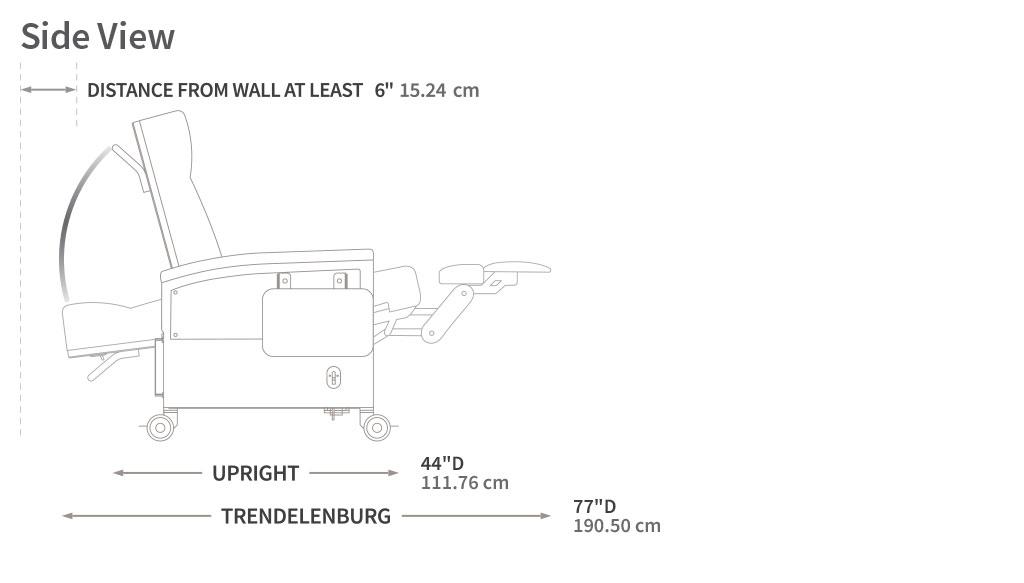

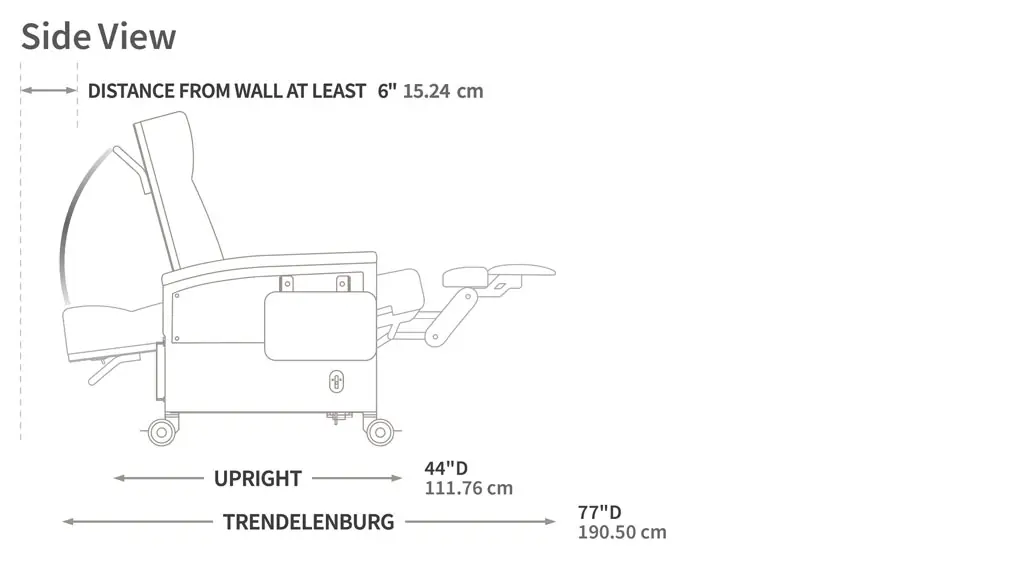

| Trendelenburg Depth | 77″ (195.6cm) |
| Upright Overall Depth (with handle) | 44″ (111.76cm) |
| Dual Thermal Plastic Casters (diameter) | 4″ (10.20 cm) |
| Weight Capacity | 300 lb. (136.08 kg) |
Standard Features
- Powered or Manual Recline

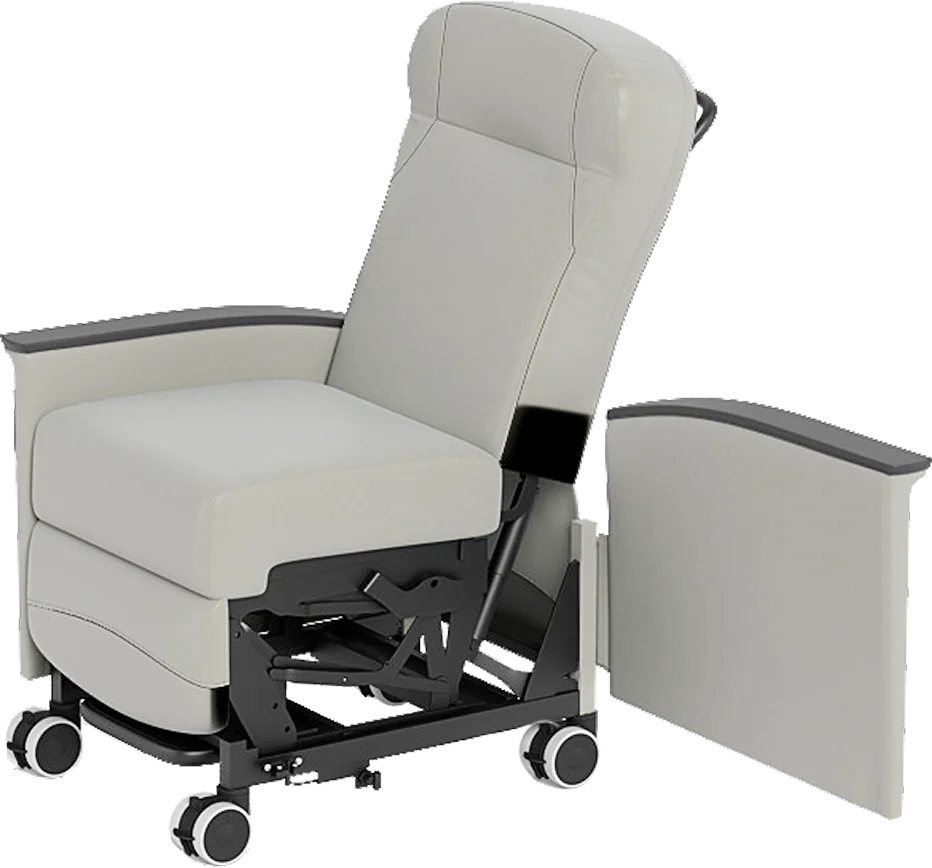

- Swing-Away Arms
- 4″ Dual Thermoplastic Casters
- Trendelenburg Positioning
- One Standard Fold-down Side Table
- Wall Hugger Mechanism
- Push Handle
- Foot Tray
- Hand Held Remote/Pendant (power models only)
Accessories
Fabrics & Finishes
Measurements & Dimensions
Model Numbers
| XL Model | |
| Model Number | Model: 68P |
Measurements
| Back Height (from floor/seat) | 49″/31″ (121.92 cm/ 78.7 cm) |

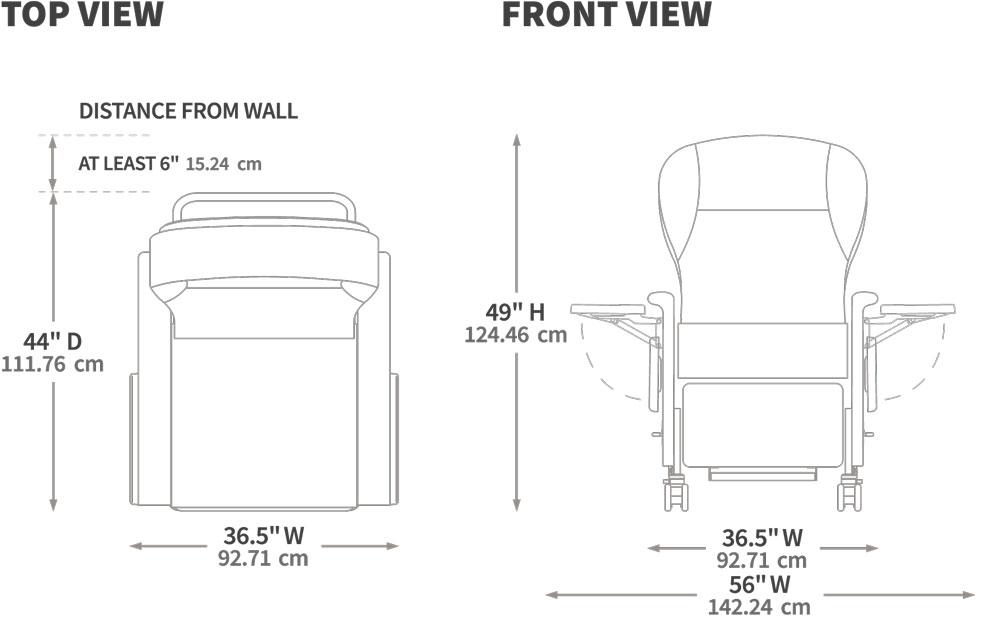

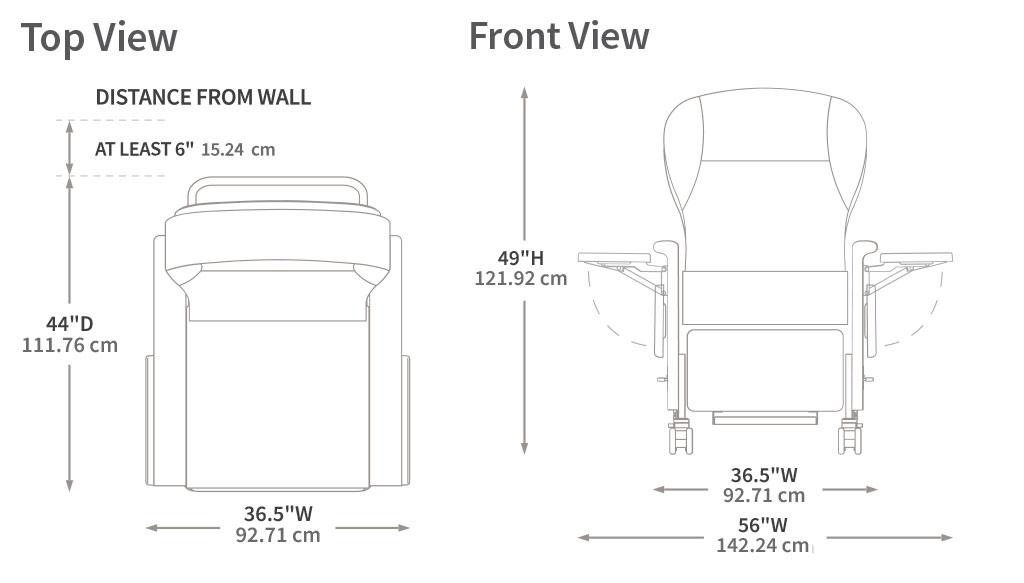

| Overall Width (2 tables down/up) | 36.5″/56″ (92.71 cm / 142.24 cm) |
| Seat Width | 26.75″ (67.95 cm) |
| Arm Height (from floor) | 29″ (73.70 cm) |
| Seat Height/Depth | 24.50″ / 20.50″ (62.23 cm / 52.32 cm) |

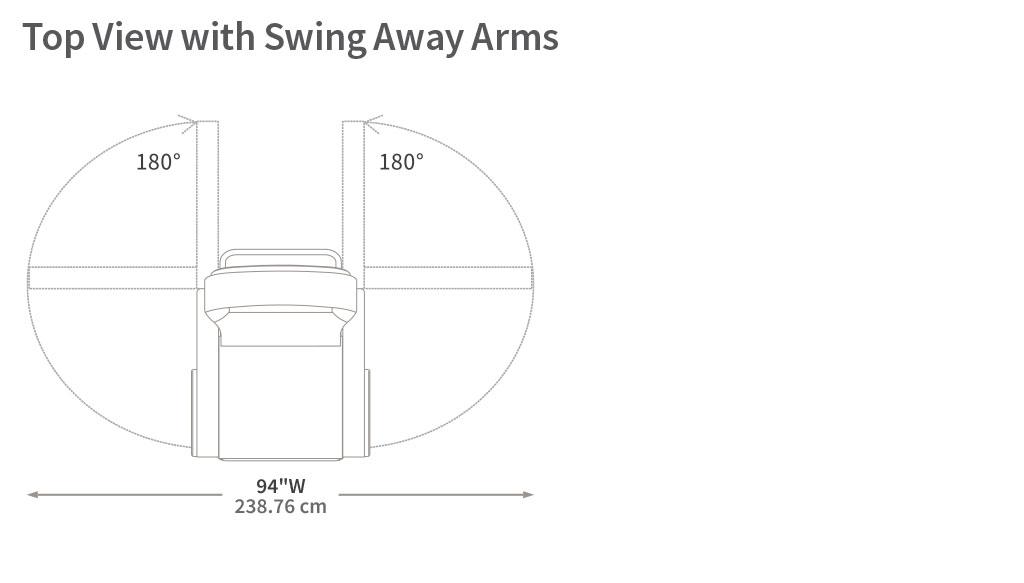

| Maximum width (arms open at widest) | 94″ (238.76 cm) |
| Minimum width (arms open at 180º) | 36.5″ (92.71 cm) |

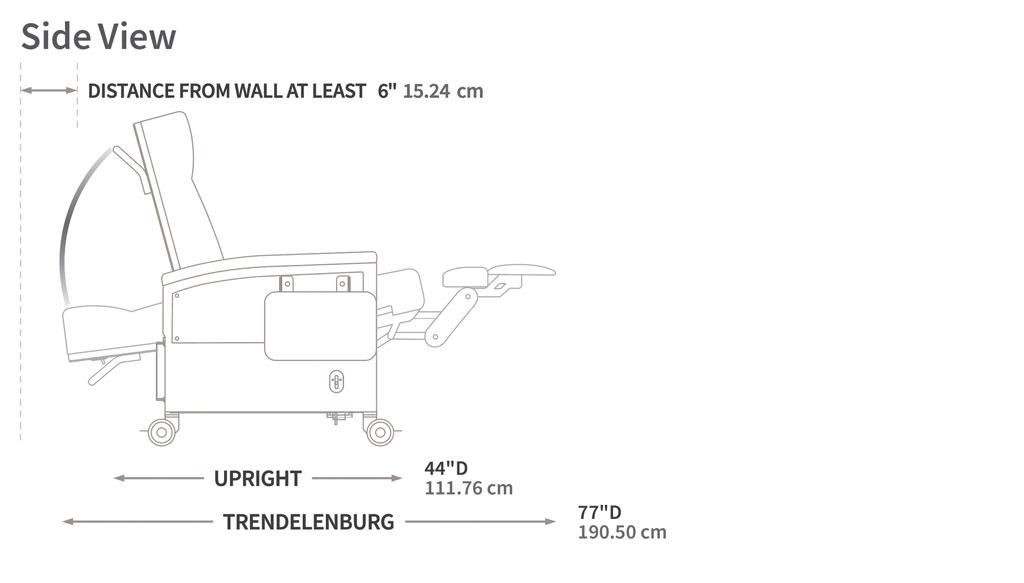

| Trendelenburg Depth | 77″ (193.04 cm) |
| Upright Overall Depth (with handle) | 44″ (111.76 cm) |
| Dual Thermal Plastic Casters | 4″ (10.20 cm) |
| Weight Capacity | 500 lb. (136.08 kg) |
Standard Features
- Powered or Manual Recline
- Swing-Away Arms
- 4″ Dual Thermoplastic Casters
- Trendelenburg Positioning
- One Standard Fold-down Side Table
- Wall Hugger Mechanism
- Push Handle
- Foot Tray
- Hand Held Remote/Pendant (power models only)
Accessories
Fabrics & Finishes
The Champion Experience
Designed for High Durability

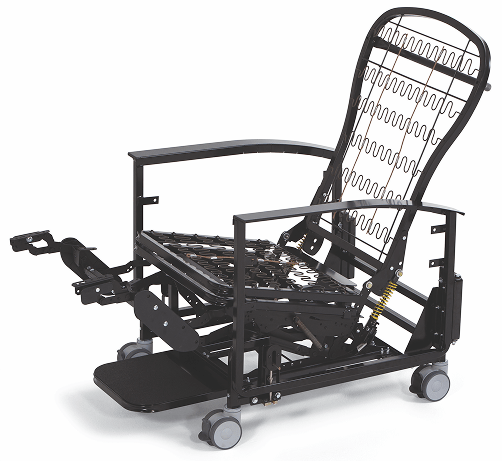

With a reinforced steel powder-coated frame and heavy-duty casters, the Ascent II medical recliner is built to last.
Higher Weight Capacity
Champion bariatric recliners are deeper and wider than normal and designed to accommodate patients up to 500 pounds.
