“One Patient, One Surface”®
Reducing patient transfers can increase patient throughput while helping decrease the likelihood of incurring costs associated with staff injury.

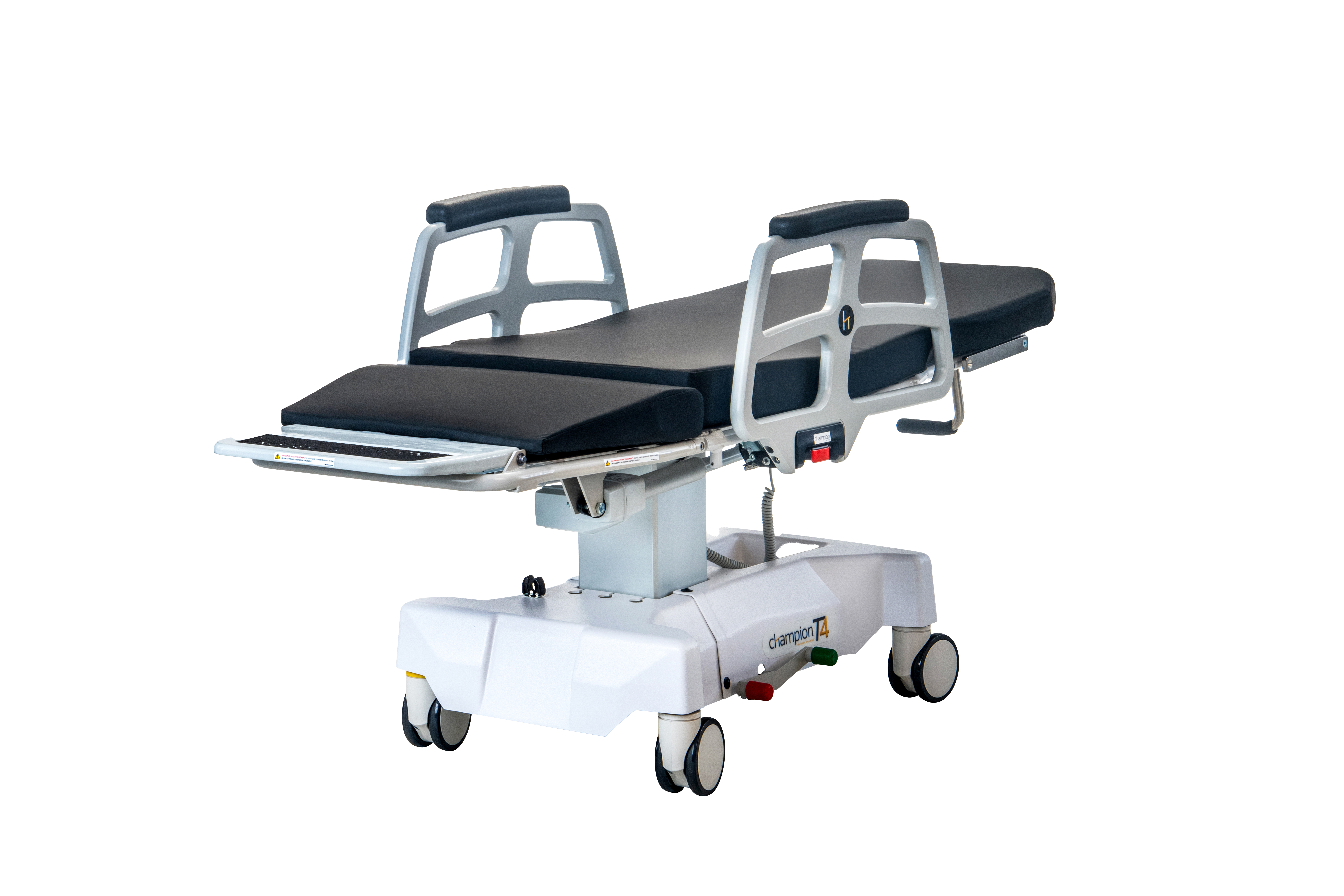

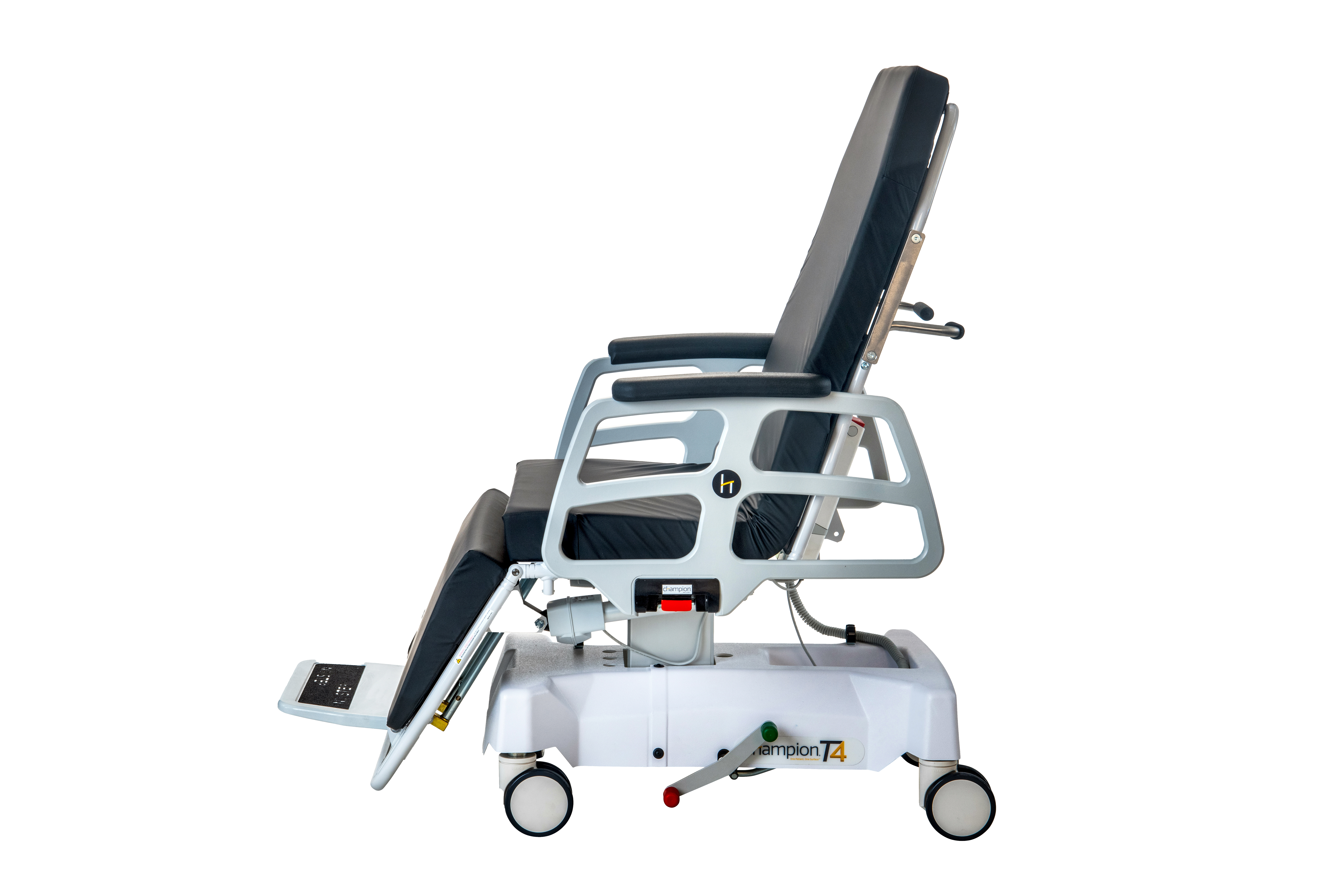

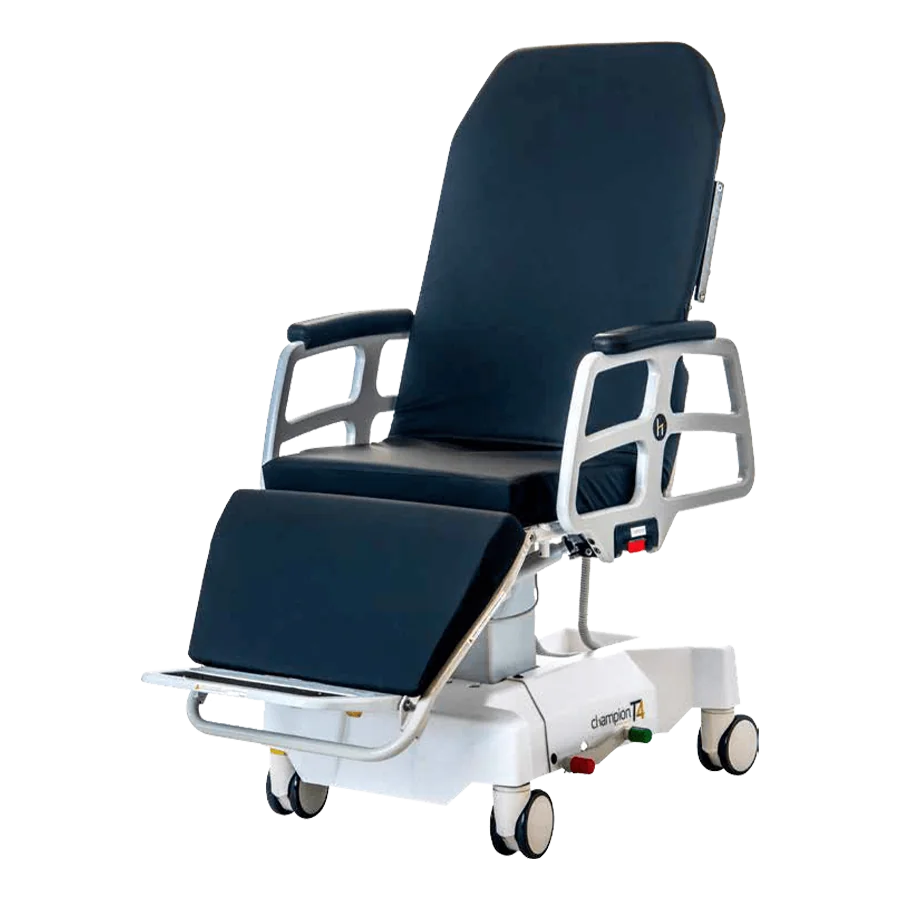

T4
Available
in
Power,
The T4 can be incorporated across a spectrum of applications and environments. With its universal appeal, it is often utilized as a procedure and/or transport chair. When seconds can save lives, you need multi-purpose medical seating solutions.
*Image shown may include features, accessories, or fabrics that do not come standard on base model.
The T4 can be incorporated across a spectrum of applications and environments. With its universal appeal, it is often utilized as a procedure and/or transport chair. When seconds can save lives, you need multi-purpose medical seating solutions.
Request a QuoteProduct Specs
Measurements & Dimensions
| Specifications | T4-XB | T4-B | T4-LB | T4-WB |
|---|---|---|---|---|
| Wheelbase (length x width) | 33” x 20” 83.80 cm x 50.80 cm |
30” x 20” 76.20 cm x 50.80 cm |
30” x 20” 76.20 cm x 50.80 cm |
30” x 20” 76.20 cm x 50.80 cm |
| Weight Capacity | 500 lbs. / 226.80 kg | 500 lbs. / 226.80 kg | 500 lbs. / 226.80 kg | 500 lbs. / 226.80 kg |
| Seat Height (low ◆ high) | 23.5” ◆ 43.5” 59.60 cm ◆ 110.50 cm |
23.5” ◆ 43.5” 59.60 cm ◆ 110.50 cm |
22” ◆ 42” 55.90 cm ◆ 106.70 cm |
23.5” ◆ 43.5” 59.60 cm ◆ 110.50 cm |
| Back Width | 24” / 60.96 cm | 24” / 60.96 cm | 24” / 60.96 cm | 28” / 71.12 cm |
| Side Rail Height (up, seat pan to rail top) ◆ Length | 13.5” ◆ 27.5” 34.29 cm ◆ 69.85 cm |
13.5” ◆ 27.5” 34.29 cm ◆ 69.85 cm |
13.5” ◆ 27.5” 34.29 cm ◆ 69.85 cm |
13.5” ◆ 27.5” 34.29 cm ◆ 69.85 cm |
| Overall Chair Height (low ◆ high) | 56” ◆ 76” 142.24 cm ◆ 193.04 cm |
56” ◆ 76” 142.24 cm ◆ 193.04 cm |
54.5” ◆ 74.5” 138.43 cm ◆ 189.23 cm |
56” ◆ 76” 142.24 cm ◆ 193.04 cm |
| Seat Width | 24” / 60.96 cm | 24” / 60.96 cm | 24” / 60.96 cm | 28” / 71.12 cm |
| Overall Width (rails up) | 31” 78.74 cm |
31” 78.74 cm |
31” 78.74 cm |
35” 88.90 cm |
| Patient Surface Length (standard ◆ with optional manual folding footrest) | 77” ◆ 71” 195.58 cm ◆ 180.34 cm |
77” ◆ 71” 195.58 cm ◆ 180.34 cm |
77” ◆ 71” 195.58 cm ◆ 180.34 cm |
77” ◆ 71” 195.58 cm ◆ 180.34 cm |
| Backrest Articulation Range | 0° – 90° | 0° – 90° | 0° – 90° | 0° – 90° |
| Charging System Input Volts | 120 – 240 VAC | 120 – 240 VAC | 120 – 240 VAC | 120 – 240 VAC |
| Charging System Current | 350 mA | 350 mA | 350 mA | 350 mA |
| Charging System Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Charging System Max Power | 38.5 W | 38.5 W | 38.5 W | 38.5 W |
Standard Features
- Patient weight capacity: 500 lb.
- Radiolucent back
- Fold-down push bars
- Push-button pendant
- Swing & tuck side rails
- Central-locking brake
- Triple column base
- Removable lithium-ion battery
- Electrostatic discharge steering caster
Accessories
Common Procedures
- Minor surgeries
- Wound Care
- ER and X-ray
- Mammography
- Audiology (For Electronystagmography (ENG) and Videonystagmography (VNG) tests)
Fabric & Finishes
Videos & Support Assets
The Champion Experience

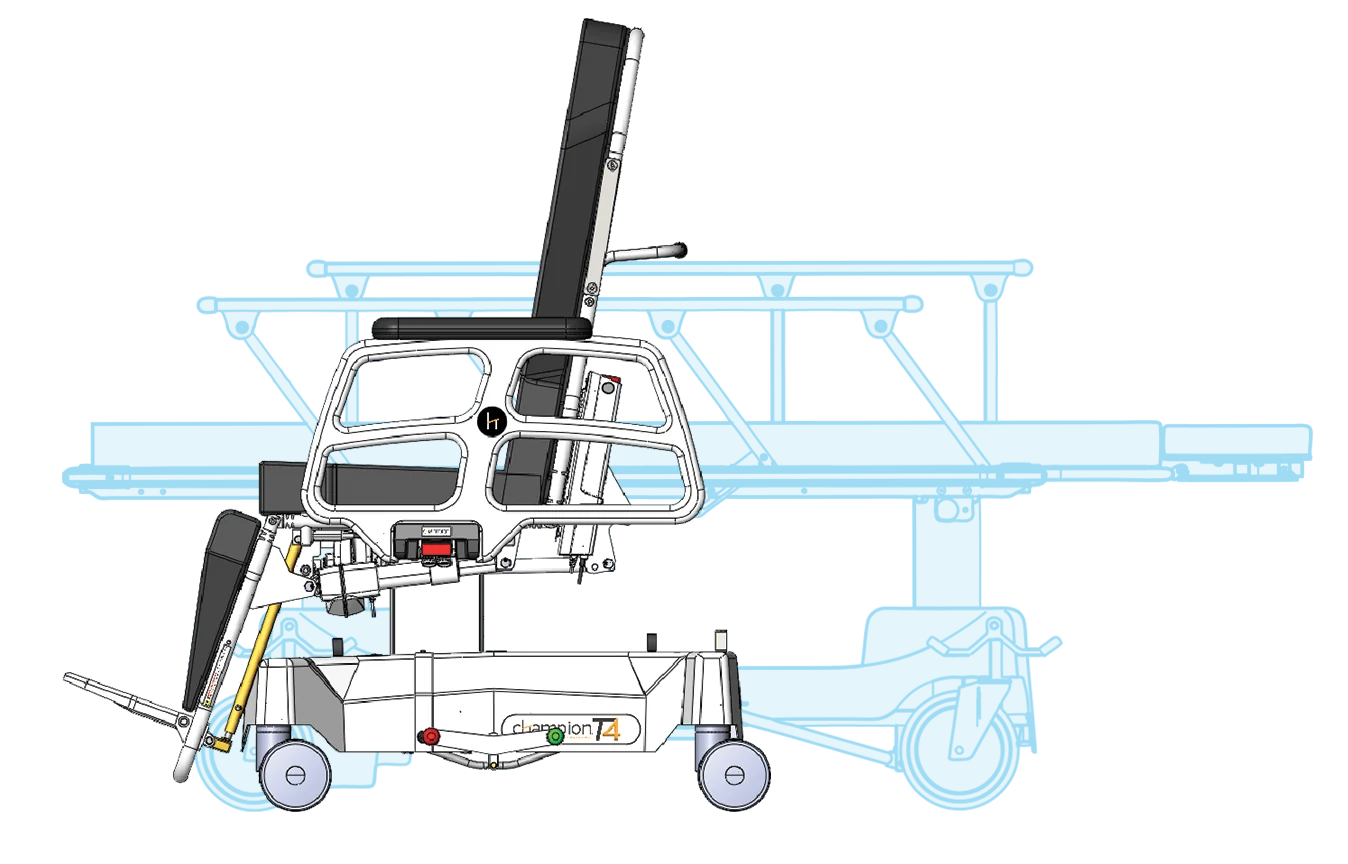

Space-Saving Footprint
In the seated position, Champion T-Series Procedure Chairs require half the space of a traditional stretcher and are easy to navigate through hallways, elevators and other close quarters. Plus, the small footprint frees-up floor space so additional units can be stored more efficiently.
The T4 is commonly used in the following clinical environments
Emergency
Endoscopy
GI
