“One Patient, One Surface”®
Reducing patient transfers can increase patient throughput while helping decrease the likelihood of incurring costs associated with staff injury.
T5
Available
in
Power,

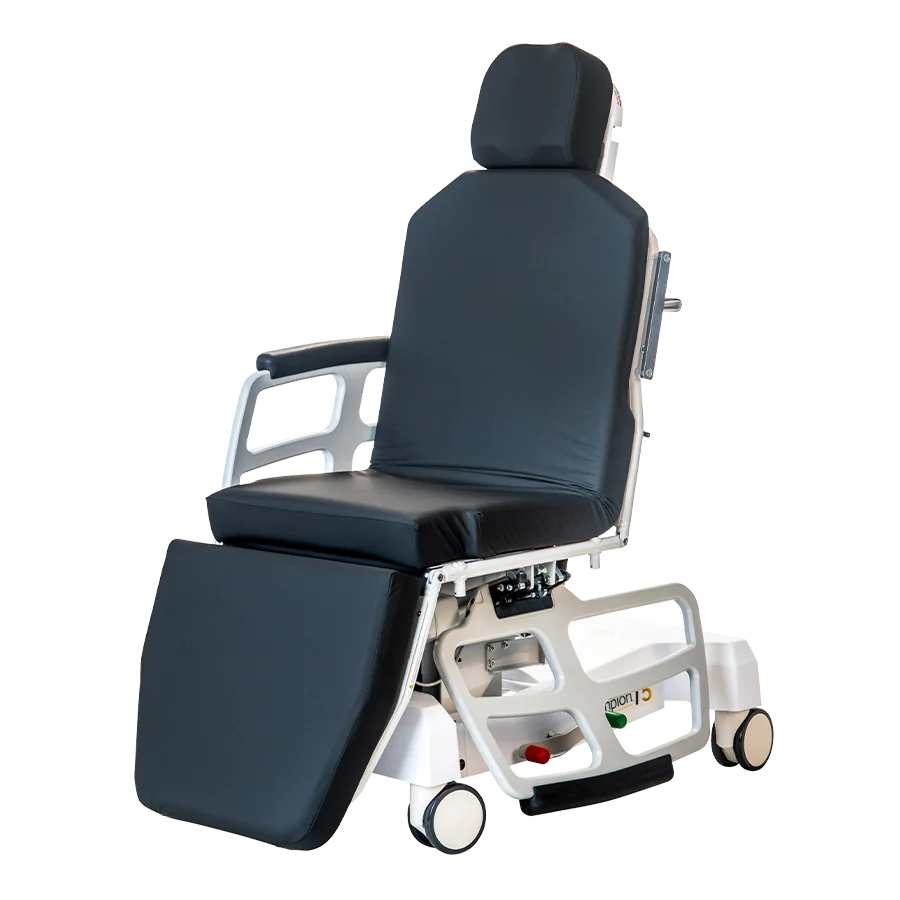

The T5 enables medical facilities to streamline the treatment process and surgical flow by replacing multiple pieces of equipment with a single device. This innovative procedure chair helps minimize risk, maximize space, and enhance productivity.
*Image shown may include features, accessories, or fabrics that do not come standard on base model.
The T5 enables medical facilities to streamline the treatment process and surgical flow by replacing multiple pieces of equipment with a single device. This innovative procedure chair helps minimize risk, maximize space, and enhance productivity.
Request a QuoteProduct Specs
Measurements & Dimensions
| Specifications | T5-XB | T5-XWB | T5-XLB | T5-B |
|---|---|---|---|---|
| Wheelbase (length x width) | 33” x 20” 83.82 cm x 50.80 cm |
33” x 20” 83.82 cm x 50.80 cm |
33” x 20” 83.82 cm x 50.80 cm |
30” x 20” 76.20 cm x 50.80 cm |
| Weight Capacity | 500 lbs. / 227 kg | 500 lbs. / 227 kg | 500 lbs. / 227 kg | 500 lbs. / 227 kg |
| Seat Height (low ◆ high) | 23.75” ◆ 43.5” 60.33 cm ◆ 110.49 cm |
23.75” ◆ 43.5” 60.33 cm ◆ 110.49 cm |
22.25” ◆ 42” 56.52 cm ◆ 106.68 cm |
23.75” ◆ 43.5” 60.33 cm ◆ 110.49 cm |
| Back Height | 33.75” / 85.73 cm | 33.75” / 85.73 cm | 33.75” / 85.73 cm | 33.75” / 85.73 cm |
| Side Rail Height (up, seat pan to rail top) | 13.5” / 34.29 cm | 13.5” / 34.29 cm | 13.5” / 34.29 cm | 13.5” / 34.29 cm |
| Overall Chair Height (low ◆ high) | 56” ◆ 76” 142.26 cm ◆ 193.04 cm |
56” ◆ 76” 142.26 cm ◆ 193.04 cm |
54.5” ◆ 74.5” 138.43 cm ◆ 190.32 cm |
56” ◆ 76” 142.26 cm ◆ 193.04 cm |
| Seat Width | 24” / 60.96 cm | 28” / 71.12 cm | 24” / 60.96 cm | 24” / 60.96 cm |
| Overall Width (rails up ◆ rails down) | 30” ◆ 28.5” 76.20 cm ◆ 72.39 cm |
34” ◆ 30” 86.36 cm ◆ 76.20 cm |
30” ◆ 28.5” 76.20 cm ◆ 72.39 cm |
30” ◆ 28.5” 76.20 cm ◆ 72.39 cm |
| Patient Surface Length ◆ Side Rail Length | 75” ◆ 27.6” 190.50 cm ◆ 70.10 cm |
75” ◆ 27.6” 190.50 cm ◆ 70.10 cm |
75” ◆ 27.6” 190.50 cm ◆ 70.10 cm |
75” ◆ 27.6” 190.50 cm ◆ 70.10 cm |
| Backrest Articulation Range | 0° – 85° | 0° – 85° | 0° – 85° | 0° – 85° |
| Headpiece Articulation Range (fully elevated – fully retracted) | 30° – 60° | 30° – 60° | 30° – 60° | 30° – 60° |
| Headpiece Adjustment Range (lowered – raised) | 0.9” – 3.5” 2 cm – 9 cm |
0.9” – 3.5” 2 cm – 9 cm |
0.9” – 3.5” 2 cm – 9 cm |
0.9” – 3.5” 2 cm – 9 cm |
| Trendelenburg | 20° ◆ 5° Reverse | 20° ◆ 5° Reverse | 20° ◆ 5° Reverse | 5° ◆ 0° |
Standard Features
- Patient weight capacity: 500 lb.
- Dual articulating headrest
- Fold-down push bars
- Push-button pendant
- Central-locking brake
- Swing & tuck side rails
- Manual quick-release back
- Electrostatic discharge steering caster
- Triple column base
- Surgical support leg
- Removable lithium-ion battery
- 33" wheelbase
Accessories
Common Procedures
- Opthalmic Surgery
- Plastic Surgery
- ENT / Oral Maxillofacial Surgery
- Emergency Department Applications
- Transport / Safe Patient Handling
Fabric & Finishes
Videos & Support Assets
The Champion Experience

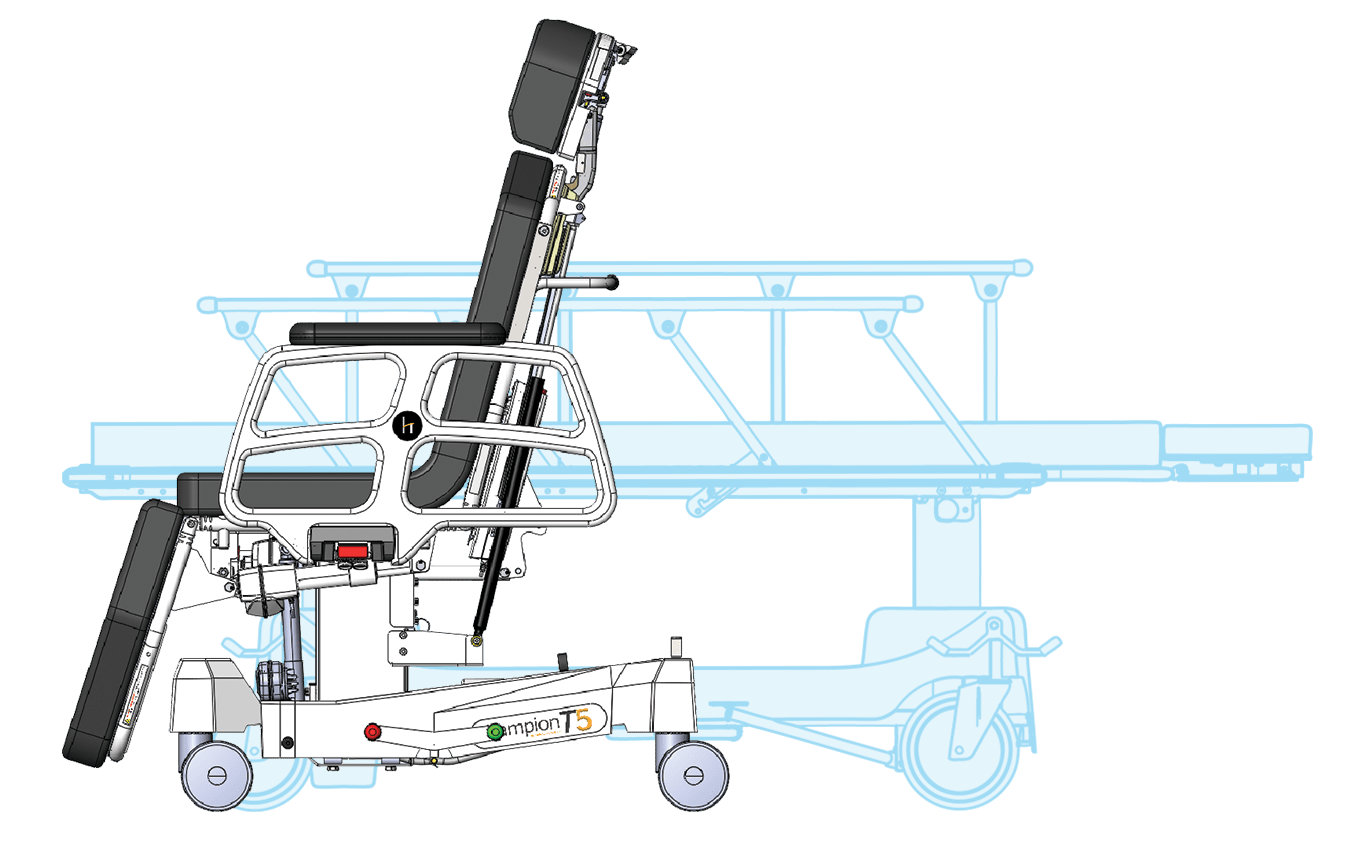

Space-Saving Footprint
In the seated position, Champion's T-Series Procedure Chairs require half the space of a traditional stretcher and are easy to navigate through hallways, elevators and other close quarters. Plus, the small footprint frees-up floor space so additional units can be stored more efficiently.
The T5 is commonly used in the following clinical environments
Ophthalmic Surgery (Eyes)
